Anest Iwata Spray Guns & Accessories
Features:
LS400 ENTECH
The new Entech LS400 represents the completion of the Supernova range of product. Entech LS400 offers to the professional users a wide range of applications for Water Based Coats. Entech HVLP technology and Pre atomization technology coupled together give users a very high comfort of application, a stable and large fan pattern, very high stability in droplet sizes and maximum savings.
Specifications:
| Part No. | Fluid Nozzle Size [mm] | Air Pressure@ Gun Inlet [bar] | Air Consumption [l/min] | Fluid Output [ml/min] | Fan Pattern [mm] | Cap # | Pot type / size | Capacity [ml] |
|---|---|---|---|---|---|---|---|---|
| LS400ETS12 | 1.2 | 1.8 | 420 | 150 | 390 | 05 | Nylon | 600 |
| LS400ETS13 | 1.3 | 1.8 | 420 | 160 | 400 | 05 | Nylon | 600 |
| LS400ETS14 | 1.4 | 1.8 | 420 | 180 | 410 | 05 | Nylon | 600 |
| LS400ETS15 | 1.5 | 1.8 | 420 | 190 | 425 | 05 | Nylon | 600 |
LS400 Spare Parts Guide

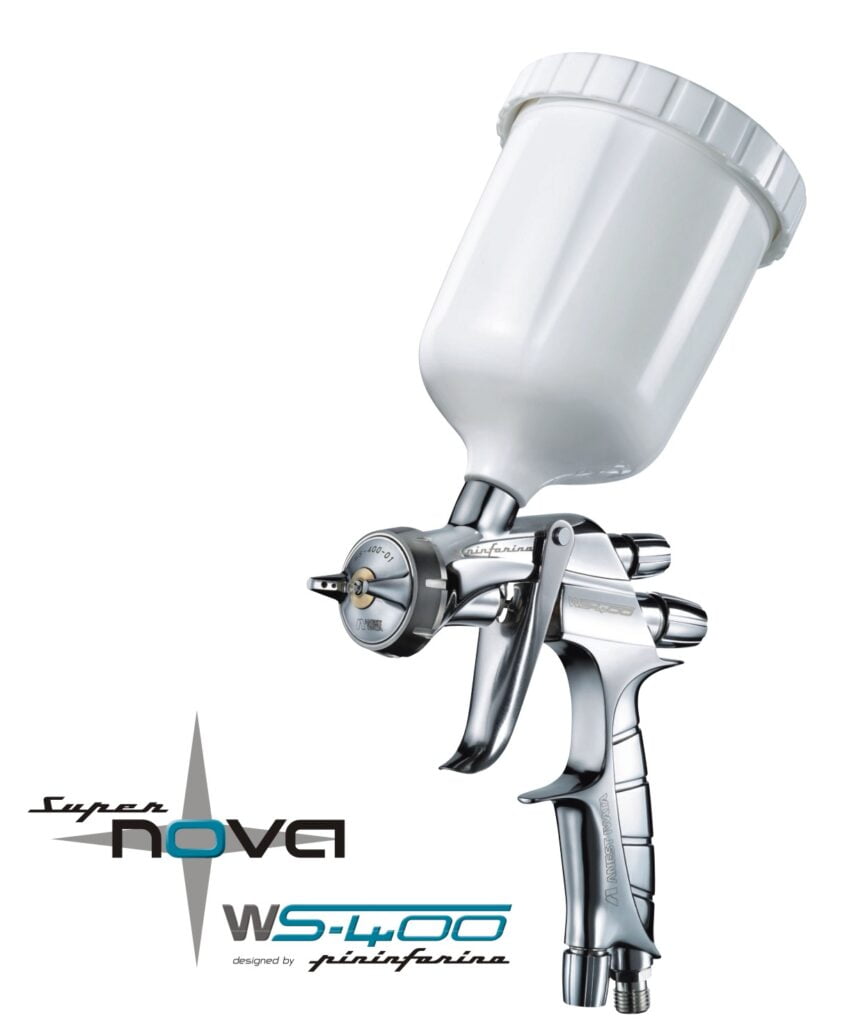

WS400 – Supernova Spray Gun Complete with 600ml Pot
Features:
PININFARINA, the Italian design house renowned for some of history’s top car designs, has worked closely with ANEST IWATA to produce a gun that combines elegance with the ultimate in spray gun design.
An in depth study by the University of Pavia, into the perfect balance and optimal ergonomics, has been closely considered by PININFARINA designers and ANEST IWATA engineers to produce this state of the art spray gun.
The SUPERNOVA delivers a consistent droplet size when atomizing which, when combined with its flat and even fan pattern, helps to reduce common issues such as boil and pin holing on HS Clear Coats.
This new superior model takes spraying of modern water based basecoats and HS Clear Coats to another level.
Specifications:
| Part No. | Fluid Nozzle Size [mm] | Air Pressure@ Gun Inlet [bar] | Air Consumption [l/min] | Fluid Output [ml/min] | Fan Pattern [mm] | Cap # | Pot type / size | Capacity [ml] |
|---|---|---|---|---|---|---|---|---|
| WS4001201 | 1.2 | 2 | 356 | 120 | 350 | 1 | PCG.600P2 | 600 |
| WS4001401 | 1.4 | 2 | 370 | 210 | 370 | 1 | PCG.600P2 | 600 |
WS400 Spare Parts Guide
AZ3 – Series 2 HTE Spray Gun complete with 600ml Pot
Features:
The AZ3HTE is an affordable high transfer efficiency centre post gravity feed spray gun.
The perfect gun for primer and heavy bodied materials, the AZ3HTE is a must have in every bodyshop. One of the many upgrades the re-modelled AZ3HTE features is a separation of the air control and your air hose, along with a newly designed air cap and a polished body for easier cleaning and maintenance.
Specifications:
| Part No. | Fluid Nozzle Size [mm] | Air Pressure@ Gun Inlet [bar] | Air Consumption [l/min] | Fluid Output [ml/min] | Fan Pattern [mm] | Pot type / size | Capacity [ml] |
|---|---|---|---|---|---|---|---|
| AZ3HTE213C | 1.3 | 2 | 200 | 140 | 240 | PCG.6AG | 600 |
| AZ3HTE215C | 1.5 | 2 | 200 | 160 | 260 | PCG.6AG | 600 |
| AZ3HTE218C | 1.8 | 2 | 205 | 250 | 300 | PCG.6AG | 600 |
| AZ3HTE220C | 2.0 | 2 | 205 | 300 | 340 | PCG.6AG | 600 |
| AZ3HTE225C | 2.5 | 3 | 279 | 450 | 360 | PCG.6AG | 600 |
| AZ3HTE230C | 3.0 | 3 | 288 | 560 | 400 | PCG.6AG | 600 |
| AZ3HTE235C | 3.5 | 3 | 307 | 600 | 420 | PCG.6AG | 600 |
AZ3HTE Spare Parts Guide
Aqua Dry Gun for Waterborne Paint Drying
Features:
- Aqua Dry Gun
- Ideal for the acceleration of flash off of Waterborne Coatings
- Venturi increases air flow by 6:1
- Adjustable air flow
- Air consuption 390 l/min (13.8cfm)
- Working pressure 43psi
- Maximum pressure 6.8 bar (98psi
- Weight 400g
ADG.KIT – Aqua Dry 2 Gun Kit with Stand
- 2 Hand Blowers for Waterborne drying
- Stand
