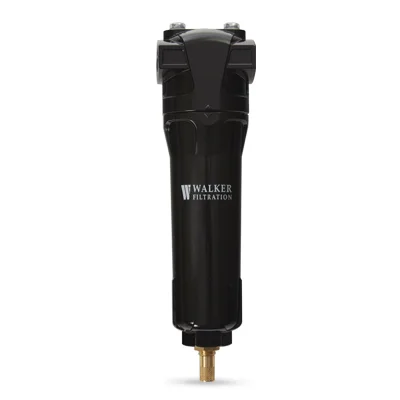

Walker Alpha Water Separator

$203.50$2,420.00

Unique Centrifugal Module

  • Removes 99% of bulk water even at low velocities.

Externally Accessible Drain Valve

  • Eliminates the need to access the inside of the filter housing when servicing the drain.

Modular Construction

  • Low cost connecting kits and new filter head design enables easy close coupling assembly.
Compare
SKU: N/A Category: Tags: ,

Description

Integrating into Walker Filtration’s compressed air filtration range, the Alpha Water Separators combine proven centrifugal technology with a new forward-thinking housing design to deliver market leading water removal efficiencies – eliminating 99% bulk water with continuously low differential pressure.

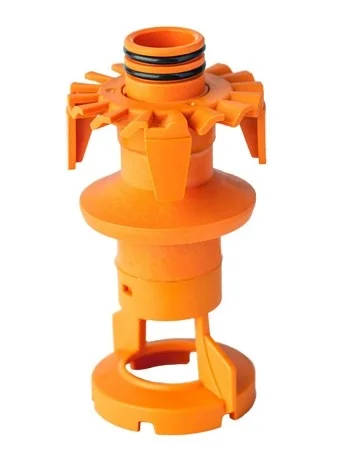

The custom engineered centrifugal module features unique vanes to eliminate points of low efficiency, and a vortex arrestor to stop re-entrainment – ensuring minimal operating pressure loss and maintaining excellent liquid removal, even at low velocities.

Walker Filtration Water Separators are tested in accordance with ISO 12500-4: 2009.

Removes 99% of bulk water when tested in accordance with ISO 12500-4

No replacement components are required, making Walker Filtration’s Water Separators a viable and cost-effective solution for removing bulk water from compressed air.

The custom engineered centrifugal module features unique vanes to eliminate points of low efficiency, and a vortex arrestor to stop re-entrainment – ensuring minimal operating pressure loss and maintaining excellent liquid removal, even at low velocities.

Additional information

WeightN/A
DimensionsN/A
Brand

Filter Model

1/4" 15 CFM, 3/8" 35 CFM, 1/2" 42 CFM, 1/2" 50 CFM, 1/2" 70 CFM, 3/4" 125 CFM, 1" 175 CFM, 1 1/4" 280 CFM, 1 1/2" 400 CFM, 2" 700 CFM, 1/8" 6 CFM, 2 1/2" 850 CFM, 3" 1500 CFM
