Description
Features

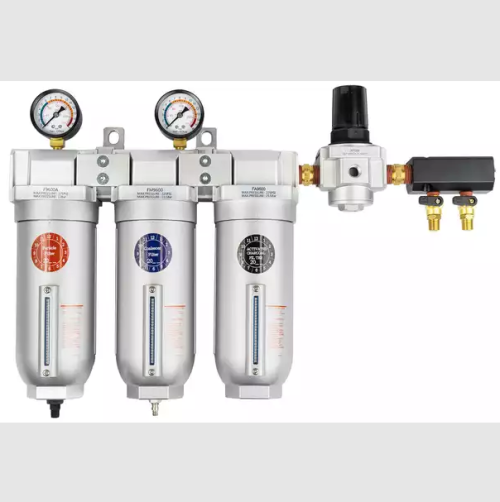

The particle filter with auto drain/Coalescing filter/Activated-charcoal filter is a three part system. The first stage filter is designed to remove most liquid and solid particles from the air supply. The second stage Coalescing filter is used to remove 99.9% of oil vapour particles. The third stage activated-charcoal filter is for absorption of oil vapours and harmful gases, protecting the painter from the harmful vapours and gases.
Highlights
Stage 1: 5µm particulate filter element with auto drain:
Remove oil, condensed water and particles >5µm.
Stage 2: 0.01 Coalescer filter element:
Remove 99.99% particles and oil vapour to 0.01µm.
Stage 3: Active charcoal filter element:
Absorb oil vapours and odours from air stream.
Stage 4: Air pressure regulator and twin hose outlet
Specifications
- Max. Temperature: 60° C / 140° F
- Auto drain:
- Set Pressure: 30~175 psi (2.1~12 Bar)
- Manual drain:
- Set Pressure: 7~215 psi (0.5~14.8 Bar)
- Air Inlet/Outlet: 1/2″, 3/4″, 1″
- Gauge Ports: 1/8″
