Description
The JORC Combo Fluidrain feature is a predetermined time setting applied on timer controlled condensate drains designed to automatically remove condensate from compressed air systems.
The JORC Combo Fluidrain is designed to remove condensate from compressors, compressed air dryers and receivers up to 20 m³/min. compressor capacity and 10 bar pressure.

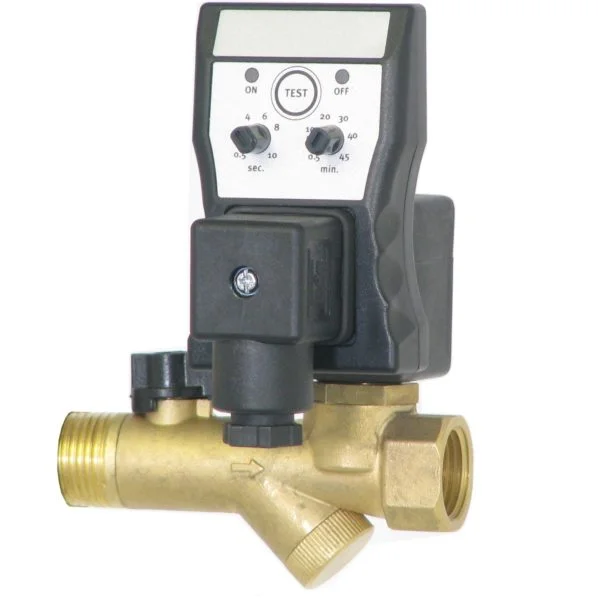

The FLUIDRAIN-COMBO-QUICKSET saves installation time and protects against large particles found in condensate, thanks to the integrated ball valve strainer and the QuickSet timer adjustability.

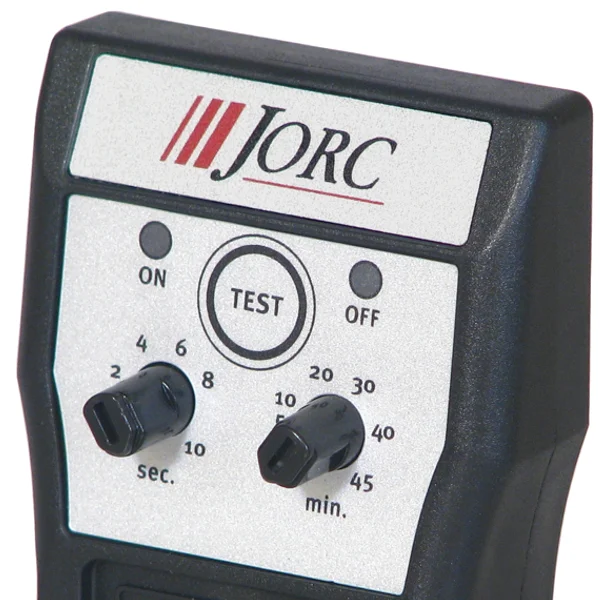

Simply adjust the timer according to the compressor capacity and the operating pressure – and go!
Can either be hard wired by a licensed electrician or purchase a 3mtr power cable to adapt onto timer and simply plug into power supply.
SPECIFICATIONS
| MAXIMUM COMPRESSOR CAPACITY | 20 m³/min. |
| PRESSURE RANGE | 0 – 10 bar (higher pressure available, see FLUIDRAIN) |
| SUPPLY VOLTAGE OPTIONS | 24 – 240 VAC/DC 50/60Hz. (please indicate) |
| MEDIUM TEMPERATURE | 1 – 55 °C |
| AMBIENT TEMPERATURE | 1 – 55 °C |
| TIMER CYCLE RANGE (ON / OFF) | Simply select the compressor capacity and pressure! |
| TIMER PCB | SMD technology, ensuring consistency in production |
| TIMER CYCLE INDICATION | Bright LED illumination |
| TEST FEATURE | Yes |
| VALVE TYPE | 2/2 way, direct acting |
| VALVE ORIFICE | 4 mm |
| VALVE SEALS | FPM |
| INLET/OUTLET CONNECTIONS | 1/4″ & 1/2″ (BSP or NPT) / 1/2″ (BSP or NPT) |
| INLET CONNECTION HEIGHT | 1 cm |
| SERVICEABLE VALVE | Yes |
| VALVE HOUSING MATERIAL | Brass (Stainless steel available, see FLUIDRAIN) |
| POWER CONNECTION | DIN 43650-A |
| ENVIRONMENTAL PROTECTION | IP65 (NEMA4) |
