DEVILBISS FILTER REGULATOR COALESCER PROAIR-2

Description

Technical Specifications DeVilbiss PRO AIR 2

• Air Inlet Thread 1/2” BSP (F)
• Regulated Outlets 3 Valved
• Unregulated Outlets NA
• Air Outlets (Ball Valves) 1/ 4” BSP (M)
• Width (Overall) 240mm (9.5”)
• Height (Overall) 280mm (11”)
• Weight 3200 gms (113oz)
• Capacity (maximum air flow) 3500 l/min (124cfm)
• Maximum Air Inlet Pressure 13 bar (189 psi)
• Maximum Regulated Outlet Pressure 0-8 bar (0-116psi)
• Maximum Operating Temperature 100°C (212°F)
• Pressure Gauge 0-11 bar (0-160 psi)
• Gauge port 1/8” BSP (F)

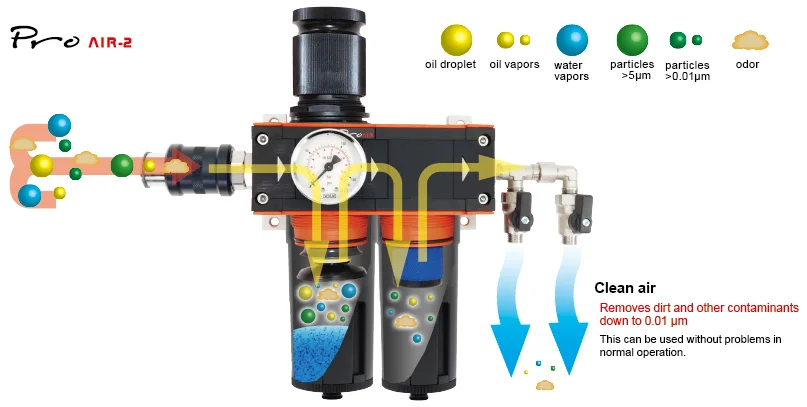

• Air Filtration Down to 0.01 microns (Suitable for Breathing Air)

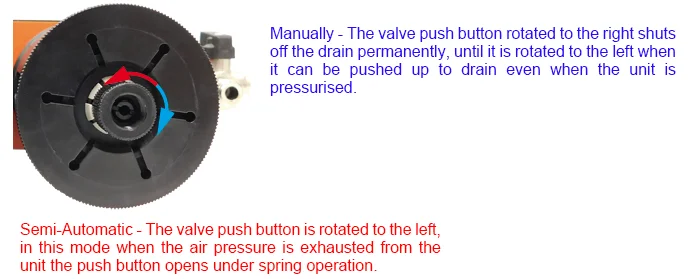

• Drain Valve Semi-Automatic
• Maximum Pressure Drop 10% of Inlet Pressure
