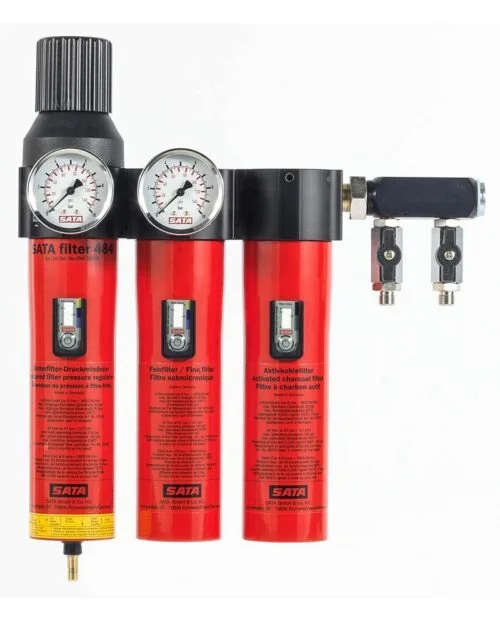

SATA 484 3 Stage Breathing Air System


Out of stock

SKU: SATA-92320 Category: Tags: ,



SATA 484 Triple Stage Fine Filter (92320)

  • The activated charcoal filter module thoroughly protects the painter from harmful vapours and gases
  • The microfiber fine filter filtrates particles of 0.01 micron size, ensures a filtration degree of 99.998 % (100 % technically clean air) and thus prevents bad paint jobs and expensive redoes
  • The saturation degree of the fine filter can be read at the dual gauge
  • Very high air flow: 3,600 Nl/min at 6 bars (130cfm at 90psi)
  • The cyclone separator thoroughly removes oil and water from compressed air
  • The automatic condensate discharge valve prevents condensate from entering into the compressed air line (low servicing efforts)
  • The large sintered bronze filter filtrates particles of 5 micron size, has a long life time and is easy to clean
  • Sturdy metal housing, making the combi fine filter unit with activated charcoal filter perfectly suitable for temperatures of up to 60° C (140° F)
  • Air inlet: 1/2 inch
  • Two outlet valves: 1/4 inch
  • The pressure regulator with gauge allows easy pressure adjustment


  • Air inlet: G 1/2 int.
  • Operating inlet pressure: 15.0 bar  (225 psi)
  • Operating outlet pressure: 10.0 bar  (145 psi)
  • Air flow rated at 6 bars/87 psi: 3600 Nl/min (129.6 cfm)
  • Max. surrounding temperature: max. 60°C

SATA Filter Regulator Systems Brochure

Additional information

Weight4 kg
Dimensions50 × 30 × 30 cm
