TEC44 1/2” Motorised Ball Valve 115 VAC

$675.00



TEC44 1/2” Motorised Ball Valve 115 VAC

Compare
SKU: DV4028 Category: Tag:

Description

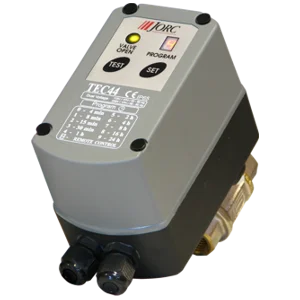

The TEC-44 is a powerful timer controlled motorised ball valve, designed to remove condensate from deliquescent dryers, tanks, vessels and refrigerated dryers.

The TEC-44 is designed to remove heavy contaminated condensate up to pressure ratings of 40 bar. This condensate drain can not be blocked and is applied where all else fails. Draining applications with a high level of contamination (rust, scale etc.) require the TEC-44.

The TEC-44 is impossible to block due to its powerful ball valve rotation and large orifice.

SPECIFICATIONS

MAXIMUM COMPRESSOR CAPACITYAny size
PRESSURE RANGE0 – 40 bar
SUPPLY VOLTAGE OPTIONS24VDC, 115VAC and 230VAC 50/60Hz. (please indicate)
MEDIUM TEMPERATURE1 – 60 °C
AMBIENT TEMPERATURE1 – 55 °C
TIMER CYCLE RANGE (ON / OFF)7 seconds to 15 minutes ON / 4 minutes to 24 hours OFF
ACTUATOR PCBSMD technology, ensuring consistency in production

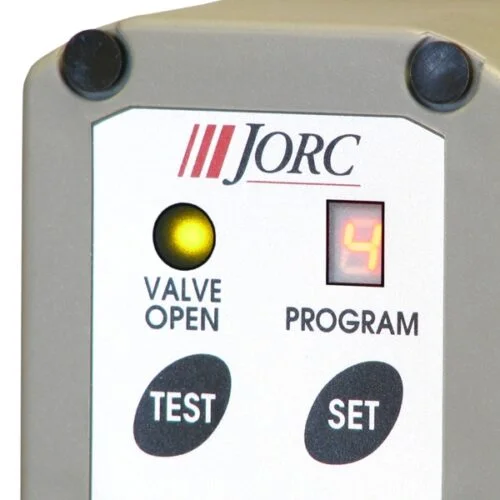

TIMER CYCLE INDICATIONBright LED illumination, LED program indicator
TEST FEATUREYes
VALVE TYPE2/2 way, motorised ball valve
VALVE ORIFICE12 mm
VALVE SEALSFPM and Teflon
INLET/OUTLET CONNECTIONS1/2″ (BSP or NPT)
INLET CONNECTION HEIGHT1.0 cm
SERVICEABLE VALVEYes
VALVE HOUSING MATERIALBrass nickel plated, ballvalve stainless steel
POWER CONNECTIONCable and plug
ENVIRONMENTAL PROTECTIONIP65 (NEMA4)
REMOTE SWITCH OPTIONYes



Additional information

Weight1 kg
Dimensions25 × 20 × 20 cm
