SATA Air Vision 5000


  • Available with or without carbon filter pack

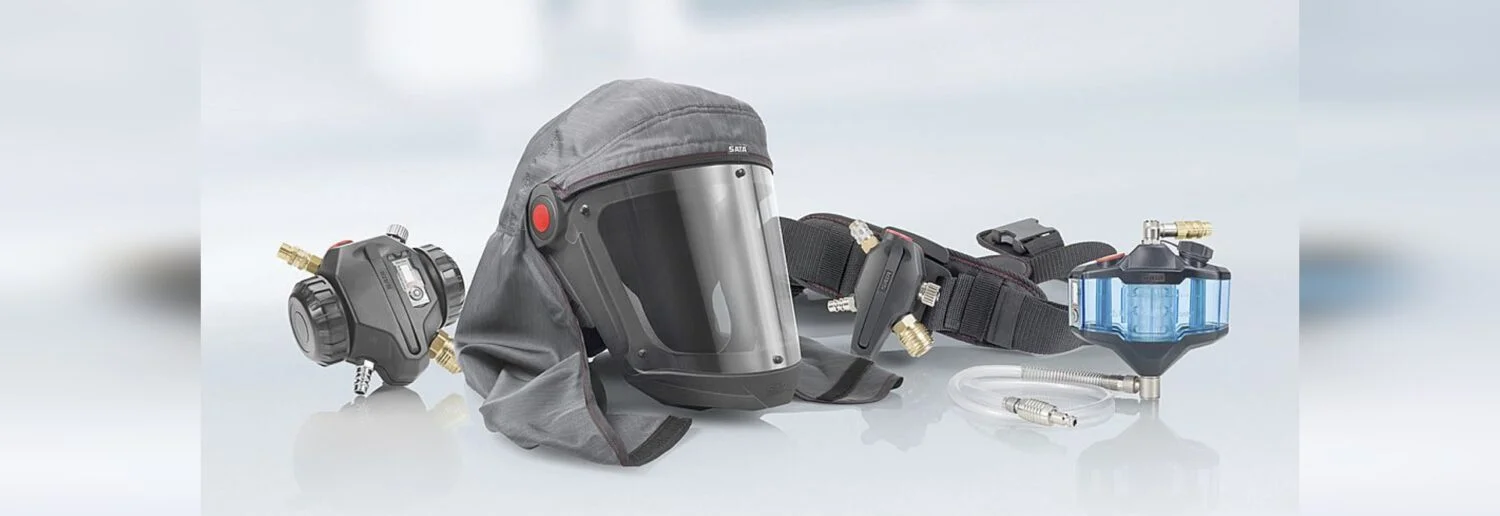

SATA Air Vision 5000

The entire head is protected from the contaminated environment providing maximum health protection.
The new SATA Air Vision 5000 puts the focus on effective health protection and lets you experience a whole new and comfortable way of breathing, due to a completely re-designed breathing air supply system. With its modern, ergonomic design, the hood can be adapted to fit almost any head shape, allowing the individual adjustment of its effective circumference, height and position.


150 Nl/min of technically clean compressed air, e.g. supplied from a SATA filter 484, ensure the slight positive pressure inside the hood, in order to securely prevent overspray and contaminants from penetrating. When the air volume falls below the required minimum threshold, an acoustic warning signal will be activated on the SATA Air Vision 5000.


The modern, ergonomic design of the hood with its optimised head fixation ensures perfect fit to almost any head shape.


The new method of breathing air distribution inside the hood reduces the air consumption as well as the noise level to 64 dB(A). Working with personal protection equipment becomes exceptionally comfortable. An optionally available plug-in diffusor allows an alternative air flow inside the hood. The large, low-reflection visor shield offers a very generous field of vision. To ensure perfect wearer comfort, the hood can be adapted in circumference, height and position to fit almost any head shape. The comfort band cushioning the forehead can be mounted in just a few seconds and a second one, if required, on the rear, keeping the hood hygienically clean and comfortable at all times. During work interruptions, the hood can be conveniently hooked on the fold-out support arm integrated in the SATA air regulator, without the need to disconnect it from the belt unit.

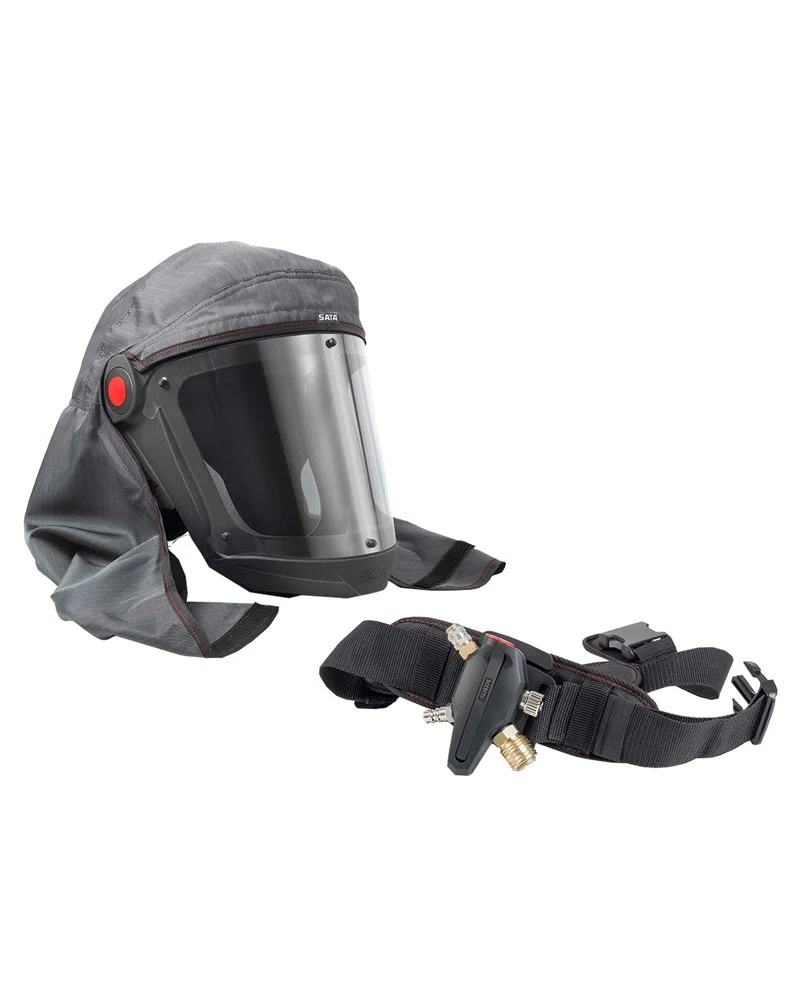

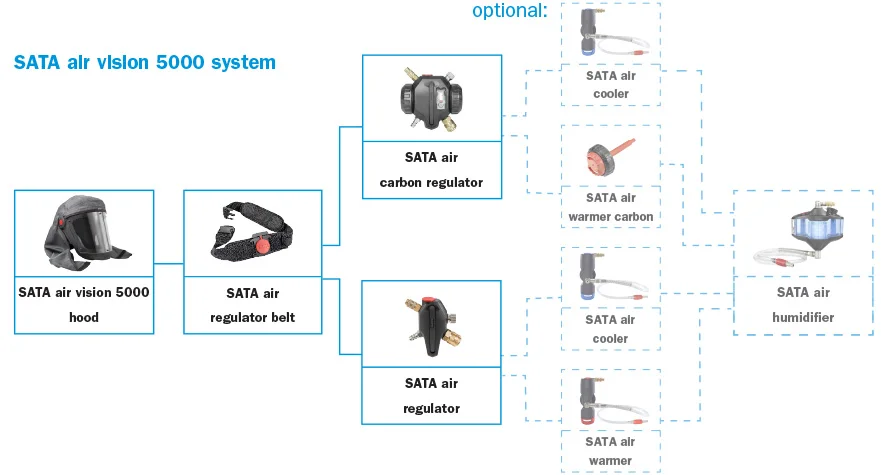

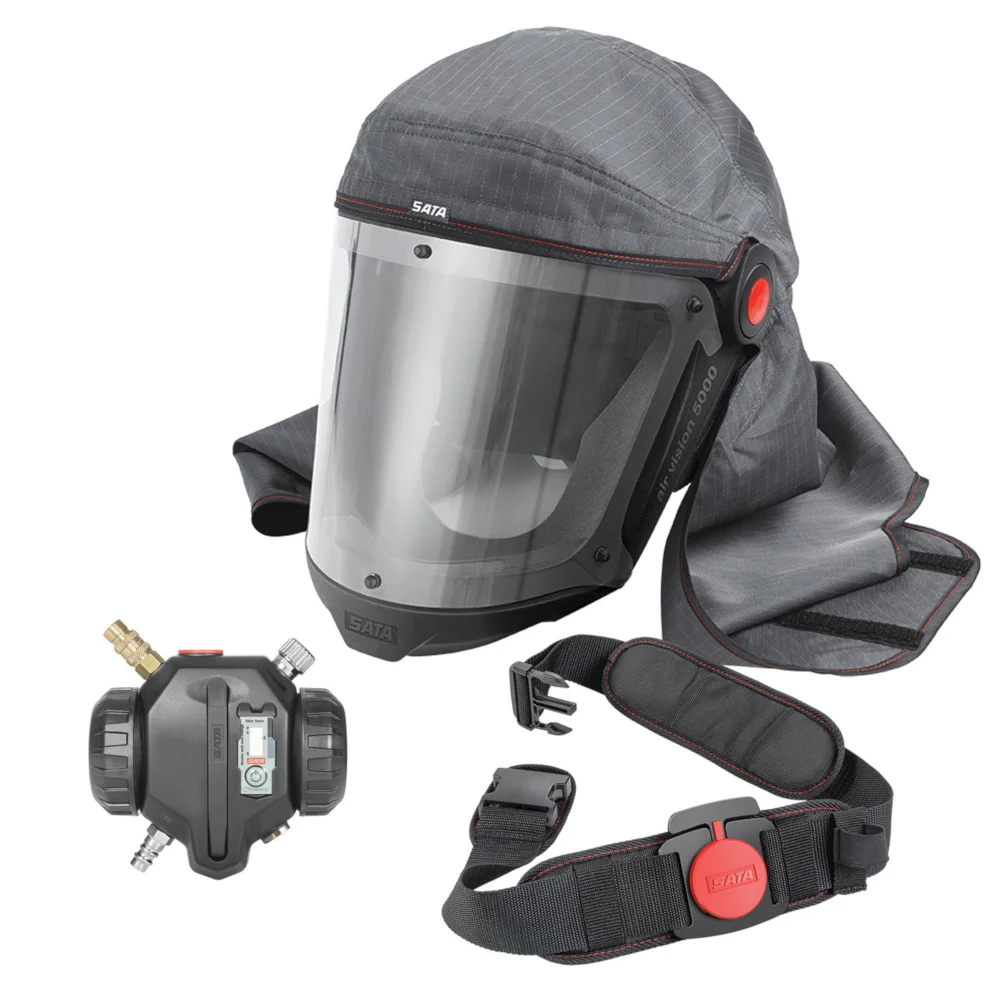

The modular design allows the adaptation and upgrade of the new belt unit according to the job requirements. Users, for instance, have now the choice to mount the air regulation unit either on the right or on the left of the belt unit. The same applies to the second available belt option, the activated charcoal absorber incl. regulation*. Useful accessories, such as the new SATA air warmer* and/or the SATA air humidifier* can be easily connected to the belt unit according to individual needs.

Individual solutions

The SATA CCS discs (Color Code System) allow the convenient identification of both your respirator hood and your SATA air regulator, to avoid confusion when several hoods are being used in the shop.

Additional information

Weight2 kg
Dimensions60 × 35 × 50 cm

SATA Vision 5000 Helmet Only, SATA Vision 5000 with Carbon Belt Pack, SATA Vision 5000 without Carbon Belt Pack
