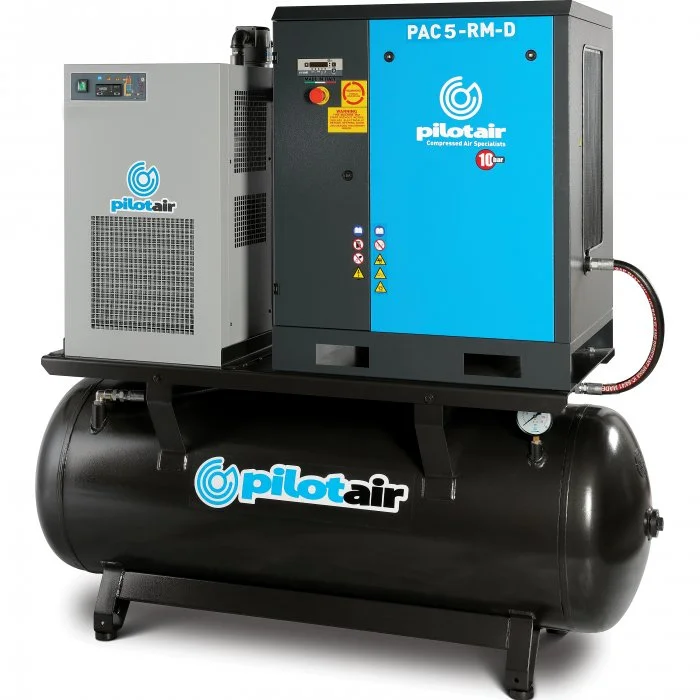

PAC5-RM-D – Rotary Screw Pilot Air Compressor & Integrated Air Dryer

Call For Price

Italian Designed & Manufactured Air End

  • 648L/Min. 22.9CFM @ 10 Bar
  • 5.5kW 415V Motor
  • 268ltr Air Receiver
  • Integrated Air Dryer
Compare

Description

The Pilot PAC Industrial 5.5KW Rotary Screw Mounted air compressor and dryer is the perfect choice for workshop and industrial requirements. With Italian designed and manufactured air end, the lower air end speeds reduce wear and increase service life. Designed for continuous operation without a drop in performance.

  • Advanced electronic controllers
  • 5.5kW/7.5hp 415v motor
  • Belt Drive
  • FAD 648lpm/22.9cfm
  • 60-64 d(B)A
Features
    • ETMII – Installed on models from 4 to 15kW
    • Controller with multi-function backlight display, the menu is alphanumeric type. In the main screen are displayed:
    • Working pressure (offload/load)
    • Oil temperature
    • Total working hours
    • On-load working hours
    • Compressor status led (stand-by, offload, load)
    • Hours remaining before maintenance
    • Four maintenance timers (air cartridge, oil, oil filter, oil separator)
    • Automatic re-start after power failure
    • Cooling fan temperature settable
    • Compressor remote start settable
    • Integrated sequence phase relay
    • Easily accessible for service & maintenance

Remote monitoring (on demand)

    • GSM/GPRS/Ethernet/WiFi module (for online compressor status, remote assistance, connection with PC, Smartphone and Tablet, connection between neighbour compressors)

Master/slave function

    • It is possible to connect up to 4 compressors for managing distribution of the workload in such a way to equalize the hours dynamically changing set pressures of the various compressors

Italian Designed & Manufactured Air End

    • High efficiency and reliability
    • Lower air end speeds mean reduced wear and longer life
    • Designed for continuous operation without a drop in performance

Poly – V Belt Driven

    • Long life and minimum maintenance

Simple Maintenance

    • Easily accessible internal components ensure efficient maintenance

Cooling System

    • Thermally controlled independent radial fan ensures constant air/oil temperatures even during heavy working conditions

F.A.D. as per ISO1217 @ 7.5 – 9.5 Bar

    • Sound level measured in accordance with PNEUROP / CAGI Standards.
    • Technical data conforms to +/- 5%. Pilot Air reserves the right to modification without notice for design and technical improvements
  • Warranty: 2 years on compressor pump, 1 year on all other components.
Includes
  • Integrated refrigerated air dryer system
Optional Accessories
  • Please note: for superior quality dry air it is recommended to use a pre-filter & after-filter with this system

Additional information

Weight260 kg
Dimensions170 × 70 × 165 cm
